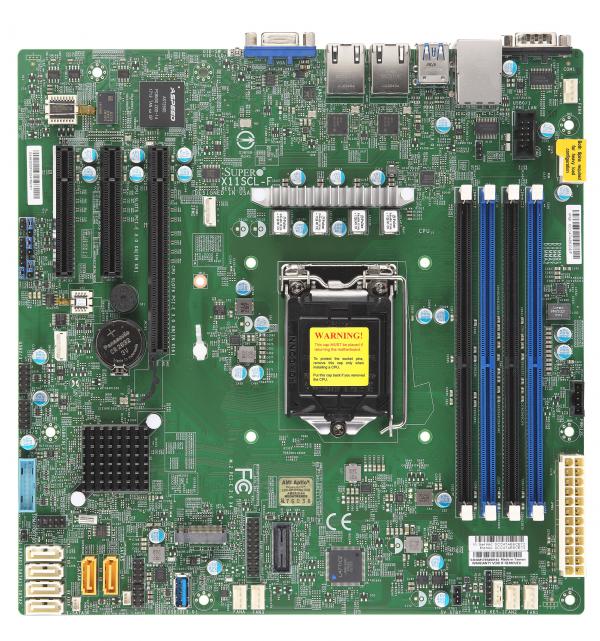

X11SCL-F

    1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100, Intel® 8th Gen. Core™ i3 series,
      Intel® Celeron® and Intel® Pentium®
    2. Intel® C242 chipset
    3. Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
    4. Expansion slots:
      1 PCI-E 3.0 x8 (in x16),
      2 PCI-E 3.0 x4 (in x8)
    5. Dual GbE LAN with Intel® i210-AT
    6. 6 SATA3 (6Gbps) ports;
      RAID 0, 1, 5, 10
    7. M.2 NGFF connector
    8. M.2 Interface: 1 PCI-E 3.0 x4
      Form Factor: 2280/22110
      Key: M-Key
      Double Height Connector
    9. I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header
